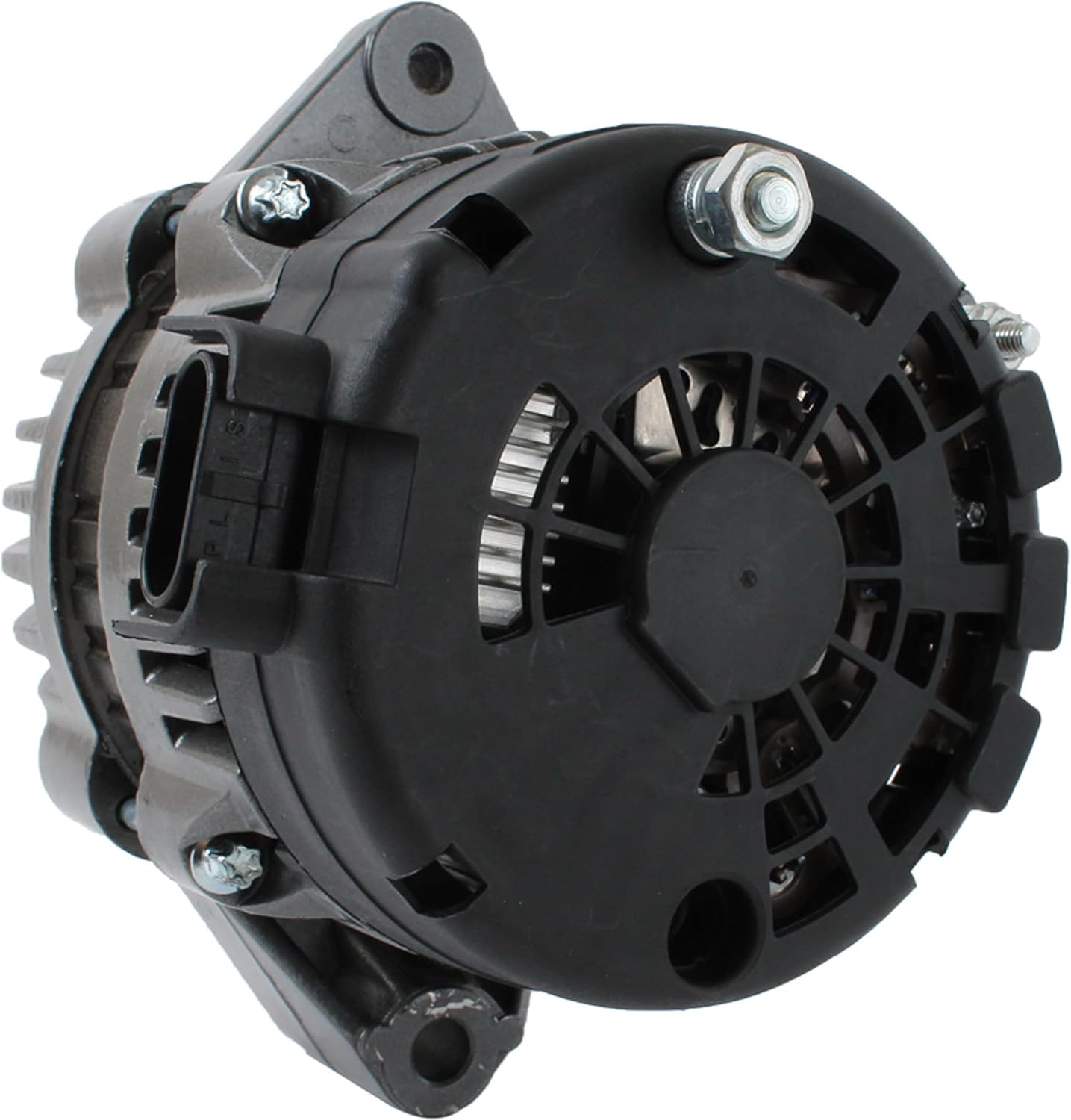

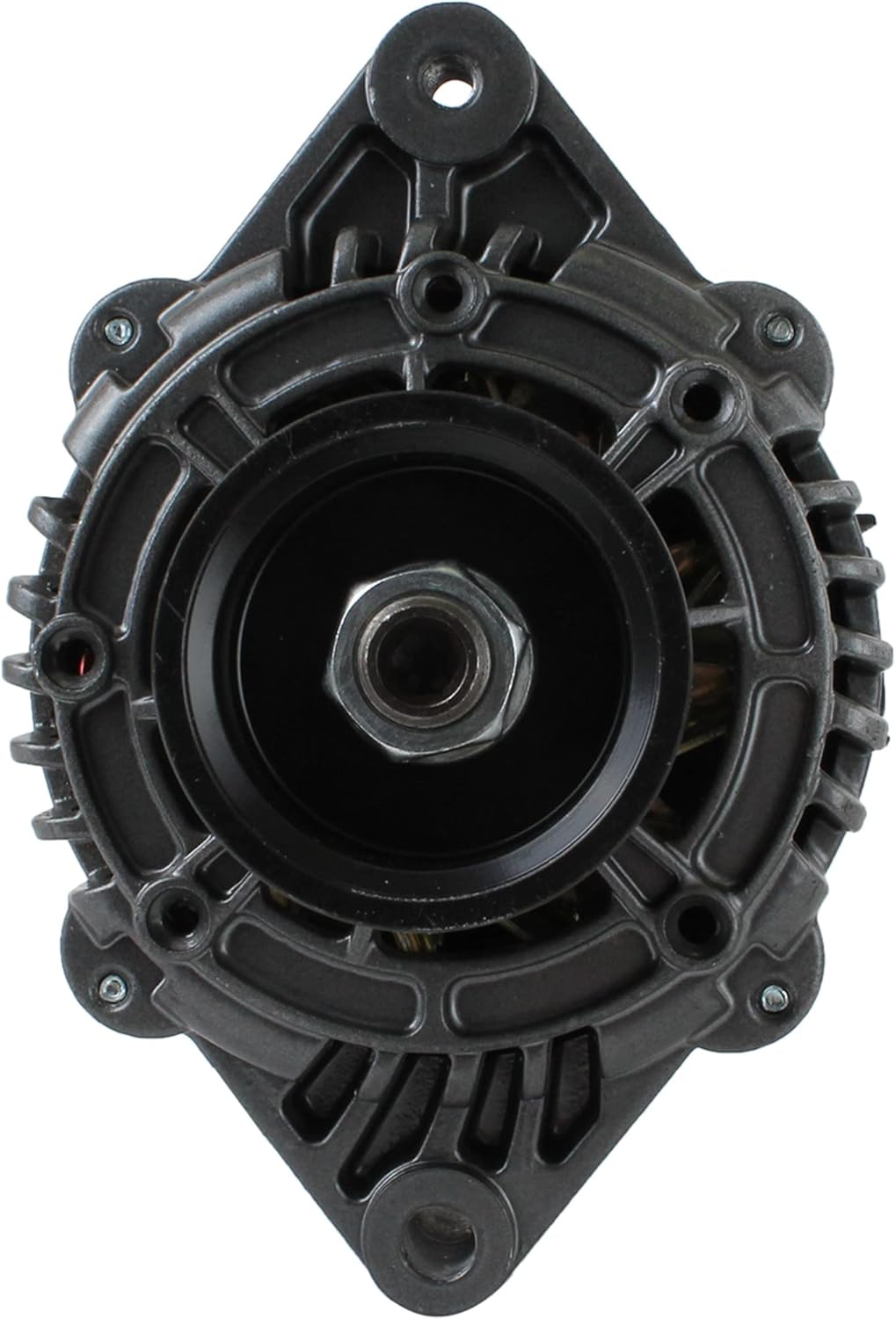

DB Electrical ADR0425 Alternator Compatible With/Replacement For Pleasurecraft Marine 305CI 350CI 364CI / 5.0L 5.7L 6.0L / 2003-2007 / Inboard Sterndrive / 95 Amp / 6-Groove Pulley / RA097009, 18-6452

View on Amazon site

**Verify the part fits before purchasing**
Specs:
Unit Type: Alternator
Voltage: 12
Rotation: CW
Dimension: Replacement 95A 11SI Unit:, Mtg. Ear 1 Hole: M8-1.25 Threaded, Mtg. Ear 2 Hole:10.1mm Unthreaded, B+ Terminal: M8-1.25, P Terminal: Spade, L Terminal: Spade, IG Terminal: Spade, S Terminal: Spade, Note: 2″ Mounting Foot,
Amperage: 95
Clock: 9
Pulley Class: S6
Regulator: IR
Fan Type: IF
Brief: Pleasureccraft Marine
6-Groove Pulley 63mm OD
Used on Marine Applications
Replaces OEM Numbers:
ARCO MARINE: 20826
ARROWHEAD: ADR0425
EMP PARTS: 4-6452
J & N: 400-12332
J & N (OLD): 400-12212
LESTER: 8725
PLEASURECRAFT: RA097009
QUICKSILVER: 8M6007503
SIERRA MARINE: 18-6452
Compatible With/Replacement For:
PLEASURECRAFT 305CI 5.0L 2006-2007, 350CI 5.7L 2006-2007, 364CI 6.0L 2003-2007

Specs: Alternator, Voltage: 12, Rotation: CW, Dimension: Replacement 95A 11SI Unit:, Mtg. Ear 1 Hole: M8-1.25 Threaded, Mtg. Ear 2 Hole:10.1mm Unthreaded, B+ Terminal: M8-1.25, P Terminal: Spade, L Terminal: Spade, IG Terminal: Spade, S Terminal: Spade, Note: 2″ Mounting Foot, Amperage: 95, Clock: 9, Pulley Class: S6, Regulator: IR, Fan Type: IF, Brief: Pleasureccraft Marine, 6-Groove Pulley 63mm OD, Used on Marine Applications
Replaces OEM Numbers: ARCO MARINE: 20826, ARROWHEAD: ADR0425, EMP PARTS: 4-6452, J & N: 400-12332, J & N (OLD): 400-12212, LESTER: 8725, PLEASURECRAFT: RA097009, QUICKSILVER: 8M6007503, SIERRA MARINE: 18-6452
Compatible With/Replacement For: PLEASURECRAFT 305CI 5.0L 2006-2007, 350CI 5.7L 2006-2007, 364CI 6.0L 2003-2007
1-year warranty protects you after your purchase. We’re confident that our products will work flawlessly once installed in your vehicle. But in a rare case that it does not, we’ll replace it anytime within one year of your order. If you have a problem, we will take every step to assist you, contact us for a replacement.
100% New Aftermarket Alternator built to meet OEM specifications
